One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing

Dongguan Xinpei Plastic & Metal Electronic Co. Ltd
Dongguan Xinpei Plastic & Metal Electronic Co. Ltd
City: Dongguan
Province/State: Guangdong
Country/Region: China
Tel: 86-769-82109962-82616722
Contact Person:
Mr Ricky Zou

One Row Circuit Board Wire Connectors Pitch 3.96mm 02p To 15p PA66 Housing

Brand Name : HRT
Model Number : A3961-2
Certification : ISO9001/ ISO14001/UL/RoHS/REACH
Place of Origin : China
MOQ : 5000 PCS
Price : Negotiated
Payment Terms : TT, Western Union, PayPal, L/C
Supply Ability : 1000 pcs per day
Delivery Time : 5 to 8 working days after payment checked
Packaging Details : Carton / Paper pots
Product Name : A3961-2 Housing
Pitch : 3.96mm
The Number of pin : 02PIN ~15PIN
Material : HSG: PA66
Row : single
Fire-protection rating : UL 94V-0 /UL94-V2
Color : black white
Mates with : A3961 series wafer
suitable : A3961 sreies terminal
Contact Now

Circuit board Wire connectors pitch 3.96mm 02p to 15p PA66 housing


Description:


1. A3961-2 series housing have A3961H-2-NP (suitable A3961 series terminal)

2, Housing used materials: PA66, Halogen Free , Fire-protection rating is UL 94-V0 94-V2 . Minimum packing quantity is 1000pcs/bag.

3. Single row housing we have 2P~15P,The daily production capacity is 30 to 50 KPCS.


Test DescriptionProcedureRequirement

Contact Resistance

Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)20mΩ (Max.)
Insulation ResistanceMate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)1000MΩ (Min.)
Dielectric Withstanding VoltageMate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301))No Breakdown.
Contact Resistance on Crimped PortionCrimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.5mΩ (Max.)

Electrical:


Current rated
7A AC/DC maximum
Voltage rated250V AC/DC
Withstand voltage1500V AC/minute
Insulation resistance1000MΩ min
Contact resistance10MΩ max
Operating temperature-25 - 85°C

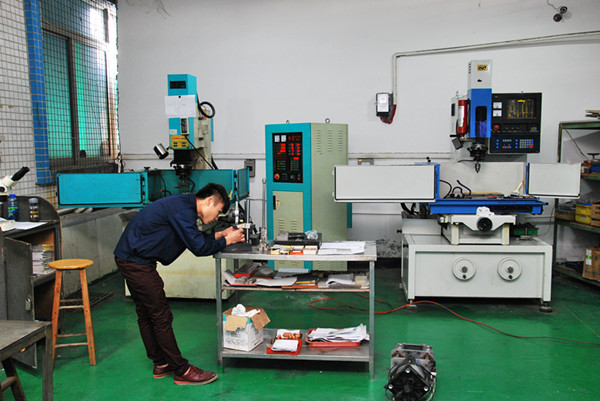

Machining center



Quality:


The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.


1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM for PULSE

7. Active Environmental policy

8. Every module tested 3times (not just batch tested)
